产品详细说明

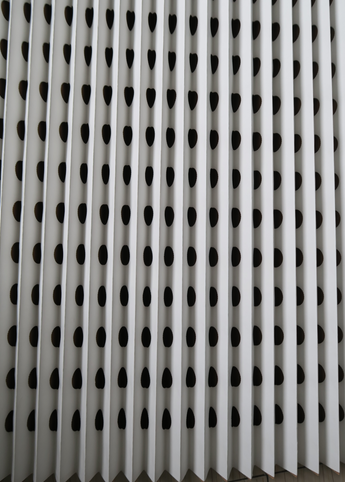

世界范围内最常用且寿命长的油漆过滤纸
褶皱增加了油漆沉淀面积，加大了过滤纸的承载力
承载力能达到20KG/m2
效率达98.3%
低风阻 低成本
使用方便 寿命长
用于过滤气流或液体中的微粒
The most popular paint filer paper in the worldwide
The foldaway increases the filter area, to enhance the bearing capacity
The bearing capacity could be 20KG/m2
Efficiency:98.3%
Low resistance and low cost
Convenient installation and long service life
Application：filter the particle in airflow or liquid
性能参数 specification
|
油漆过滤纸folded dry-type filter paper |
||||||
|
型号 |
尺寸size |
厚度thickness |
空气流速air velocity |
工作时间working hours |
效率efficiency |
承载能力paint-holding |
|
AF-161 |
0.75*10M |
60mm |
0.5~1m/s |
500*860h |
98.3% |
20kg/m2 |
|
0.9*10M |
||||||
|
1*10M |
||||||
|
1.2*10M |
||||||
|
备注：可根据客户要求定做 |
||||||
