产品详细说明

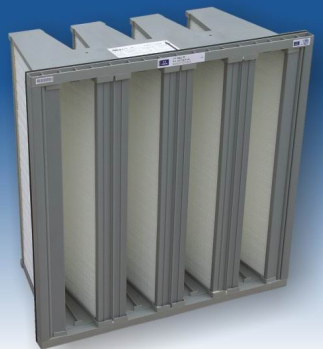

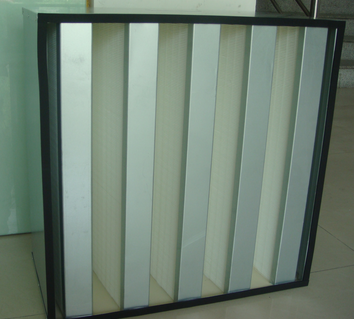

玻璃纤维或聚丙烯滤纸
处理风量大 阻力小 使用寿命长
耐温80℃
耐湿度
用于空调机组的终端过滤以及各种大风量空气净化
Glass fiber or polypropylene paper
Large air Volume, low resistance and long service time
Temp.resistance:80℃
Humidity:80%
Application:Air conditioning unit and various large volume air-cleaning system
性能参数specification
|
尺寸(mm)size H*W*D |
额定风量（CFM）rated air flow |
初阻力(pa)initial resistance |
终阻力(pa)final resistance |
型态form |
|
305*610*292 |
286 |
249PA |
500PA |
箱式型closed type |
|
610*610*292 |
2000 |
249PA |
500PA |
|
|
289*593*292 |
1000 |
270PA |
500PA |
单凸型opened type |
|
593*593*292 |
2000 |
270PA |
500PA |
